INDUSTRIAL DESIGN & PERFORMANCE HIGHLIGHTS

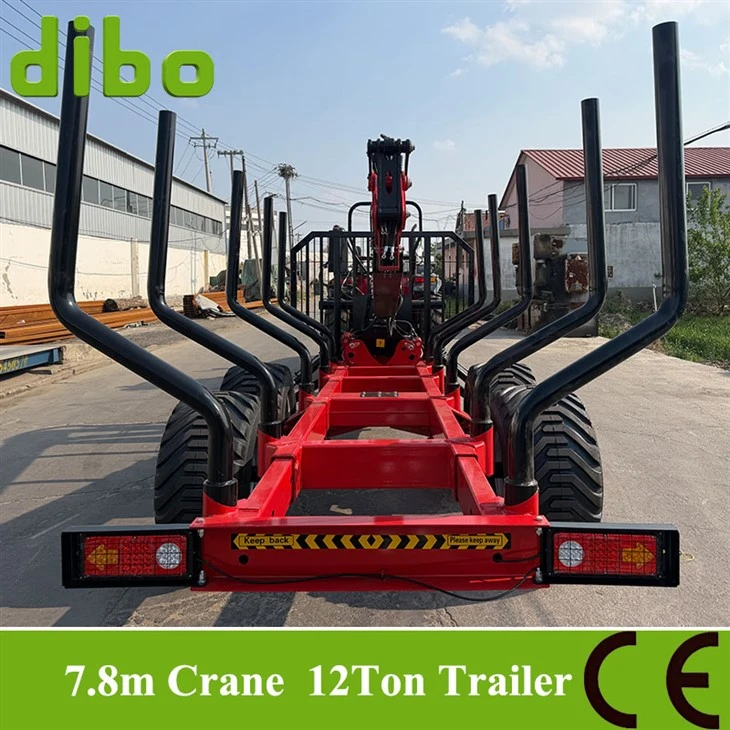

Designed for high-volume commercial harvesting, the DIBO TL7800 Crane paired with the TT12000 Trailer provides uncompromising strength in demanding forestry environments. Built upon a twin rectangular tube chassis, this 12-ton payload combination delivers exceptional structural stability when transporting dense timber over rough, unpaved logging trails.
- Power Requirement: Perfectly matched with 110 HP to 130 HP agricultural tractors.
- International Standards: Full CE certification ensures seamless import and compliance worldwide.
- Twin-Box Frame Engineering: Dual main rails eliminate structural distortion under maximum 12-ton payload conditions.
DIBO FORESTRY TRAILER MODEL SELECTION
Choose the exact payload and reach configuration tailored to your tractive power and forest terrain:
DEEP-DIVE HARDWARE BREAKDOWN
Heavy-Duty Double-Box Frame Chassis Structure
Unlike lighter single-beam trailers that flex under extreme torque, the TT12000 chassis is built on twin parallel high-tensile steel box beams:
Torsional Stiffness: Distributes heavy log loading forces evenly across two parallel longitudinal beams, resisting frame warping on uneven terrain.
Low Center of Gravity: Positions the payload lower between the main rails, greatly enhancing lateral stability during transport on sloped trails.
Robotic Seamless Welding: Continuous high-penetration robotic welds ensure maximum fatigue strength at all load-bearing cross-members.
Pull-Out Telescopic Frame Extension System
To handle fluctuating timber lengths without sacrificing trailer maneuverability, the TT12000 includes an adjustable rear chassis extension:
Variable Loading Length: The rear cross-beam slides out smoothly along nested steel tubes, extending the usable bed length to fit longer sawlogs securely.
Balanced Axle Load: Sliding the rear bumper back shifts the rear weight distribution, reducing vertical tongue weight on the tractor drawbar.
Quick-Lock Pins: High-strength retaining pins allow operators to adjust frame length in seconds out in the field without special tools.
Safe transit along public roadways between forest sites requires maximum vehicle visibility and impact defense. The TT12000 incorporates a heavy-duty rear lighting configuration:
Reinforced Metal Grille Shields: Multi-function LED brake, indicator, and rear lamps are housed behind heavy-gauge steel mesh barriers, preventing glass breakage caused by shifting logs or falling debris.
Reflective Safety Warning Panels: Bright yellow and black directional hazard decals, combined with clear distance warnings, provide maximum visibility for trailing vehicles during nighttime road transit.
Protected Concealed Cable Channels: Wiring harnesses are safely routed through hollow steel frame sections, shielding electrical lines from snagging brush, road spray, and harsh weather conditions.
CUSTOMIZABLE FACTORY OPTIONS
Traction Upgrade (Hydraulic 4WD Axle Drive)
Add active hydraulic hub motors to the bogie wheels for traversing deep mud and snowy inclines.
Control Valve Assemblies
Choose from standard multi-spool levers, elevated high-seat controls, cabin electro-hydraulic joysticks, or wireless radio remotes.
Independent Hydraulic Power Unit (PTO)
PTO-driven hydraulic pump and oil tank package for tractors without sufficient hydraulic oil flow.
why choose us
Lorem ipsum dolor sit amet consectetur adipisicing elit.
why choose our products
Yantai Dibo Machinery Equipment Co., Ltd. specializes in engineering continuous-duty attachments for agricultural and timber harvesting industries. Marketed under the global DIBO trademark, our Shandong facility relies on automated robotic assembly, precision CNC profiling, and full-load hydraulic validation to deliver superior machinery reliability.
Built for demanding outdoor environments, our entire product portfolio holds comprehensive CE Certification. By eliminating middleman markups, DIBO supplies equipment importers and timber contractors worldwide with competitive direct-factory rates, tailored OEM engineering solutions, and dedicated after-sales replacement parts support.
FAQ
01.What is the main advantage of a double-beam frame compared to a single-beam frame on a 12-ton trailer?
02.How does the telescopic rear frame extension operate?
03.Is the TT12000 legal for public road transit?
04.What documents are provided for European customs clearance?
