Yantai Dibo Machinery Equipment Co.,Ltd. was founded in 2000 and has always been focused on firewood and timber conversion and forestry machinery equipments.Since the establishment of the factory, after many years of development, we have successively developed to the markets new generation forestry cranes & trailers Firewood Processors and Wood Sawmills etc.agricultural- and forestry equipments.From our product range it is possible to find suitable machine for hobby as well for professional user,All cranes and trailers are designed and manufactured in China.
Why Choose Us
Production Market
Our dealers has been over 20 countries in world like Austria, Slovenia, Poland, Switzerland, Sweden, Bosnia and Herzegovina,France, Germany, the United States, Canada, Romania, Chile, Vietnam, etc.
Extensive Experience
Our assembly department has extensive experience of the industry and of our products, giving customers products that are fully inspected, tested and assembled upon delivery.
Production Equipment
Our company's production equipment includes 4 shearing machines, 2 bending machines, 1 large laser cutting machine, 2 welding robot production lines, 2 CNC machining centers.
Professional Team
We have a robust team of over 300 employees, including 30 technical R&D personnel and 20 foreign trade sales staff.Giving customers products that are fully inspected, tested and assembled upon delivery.
Advantages of Forestry Trailers
Cost-Effectiveness
They provide a cost-effective alternative to traditional timber trucks.
Efficient Timber Transport
Forestry trailers are designed to transport timber from the forest to sawmills or processing plants, streamlining the logging process.
Enhanced Operational Efficiency
Forestry trailers contribute to overall operational efficiency by enabling fast and efficient transport of materials and waste, reducing labor costs and increasing productivity.
Versatility
They can be used for various tasks, including transporting logs, lumber, soil, compost, and waste.
Types of Forestry Trailers
Hydraulic Timber Trailer
Hydraulic timber trailers, also known as logging trailers, are essential tools for forestry operations. They are used to transport harvested timber or log from the forest to sawmills or other destination.
ATV Tow Behind Log Trailer
This Atv Tow Behind Forest Trailer is 3.4 meters long and can be towed by a tractor or ATV. It can be equipped with four-wheel drive and is suitable for various mountainous areas and muddy land, shuttling through the jungle. The installed winch can lift distant wood.
3 Tons Timber Trailer With Crane
This is our 4.2-meter timber crane with 3ton trailer, and we also have 6 tons, 8 tons, 10 tons, 12 tons, and 12 tons. Multiple optional configurations such as telescopic beams, tail lights, and left and right traction can be added, suitable for customers with different needs.
Hydeaulic Timber Grab
The timber grab can be used to grab wood, bamboo, etc. We have different models of machines, and customers can choose according to their own needs. In addition, our wood grabber can also be equipped with lotus timber grab and shell bucket to meet the different needs of customers. Grab small wood, garbage and gravel.

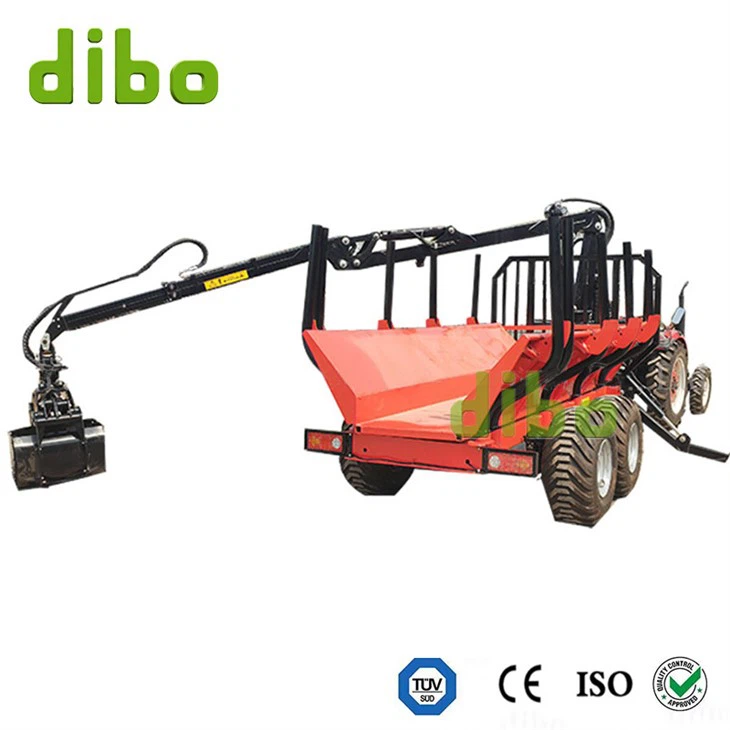

Log Grapple Trailer
Our log grapple trailer is widely used in forest farms, bamboo factories, and personal vehicle transportation. By using this equipment, the number of workers is greatly reduced, the labor intensity of loading and unloading is reduced, safety is increased, and work efficiency is improved.
Timber Trailers And Cranes
The use of timber trailers and cranes is first of all efficient. The wood grabber can take out a whole tree, speed up the work speed, and greatly improve production efficiency. The wood grabber protects the root system of trees to the greatest extent without damaging the plant structure, reducing transplant mortality and reducing cultivation costs.
Specifications
|
Model |
DIBO34 |
|
Max reach |
3.4m |
|
Lifting capacity(3.4m) |
200kg |
|
Lifting capacity(2m) |
500kg |
|
Turning radius of crane |
360° |
|
No. of swing cylinder |
2pcs |
|
Max. open & area of wood grapple |
700mm/0.08 m2 |
|
Max. load of hydraulic rotator |
1 ton(10KN) |
|
Hydraulic rotator turning radius |
Unlimited |
|
Working pressure |
18-22Mpa |
|
Control valve |
7 sets |
|
Power Unit |
6.5HP engine |
|
Weight |
260kg |
|
Max. load |
1500kg |
|
Total length |
3230mm |
|
Width with wheels |
1440mm |
|
Height |
1600mm |
|
Height of front plate |
1100x700mm |
|
No. of "S" |
2sets(Optional 3sets) |
|
Length of loading area |
2120-3520mm |
|
Loading area volume |
1.6--3m3 |
|
Min. ground clearance |
200mm |
|
Wheel |
Standard 22x11-10 (Optional 25X10-12) |
|
Weight |
260kg |
Application of Forestry Trailers
Crop and Harvest Transport
During harvest season, forestry trailers move large quantities of crops from fields to storage or market. Their ability to handle heavy loads of grains, vegetables or fruits while ensuring minimal damage during transit is crucial for maintaining the quality and profitability of agricultural produce.
Forestry Products Movement
Forestry trailers uses include transporting logs, lumber and other by-products. Their robust construction allows them to carry heavy and uneven loads, which is essential in the logging industry. This capability streamlines the process of moving timber from the forest to sawmills or processing plants.
Land Management and Soil Transport
Forestry trailers transport soil, compost and other land preparation and maintenance materials. Their versatility is particularly useful in tasks like soil amendment, where large quantities of material must be spread over large areas.
Waste and Debris Management
Both agriculture and forestry operations generate a considerable amount of waste and debris. Forestry trailers are vital in efficiently clearing this waste, whether it's agricultural by-products, fallen leaves or tree branches.
Supporting Large-Scale Agricultural Operations
For large farms and forestry enterprises, the capacity and durability of hforestry trailers are especially beneficial.
Enhancing Operational Efficiency
Forestry trailers use in agricultural and forestry operations greatly enhances overall operational efficiency. By enabling fast and effective transport of materials and waste, they help reduce labor costs and increase productivity.
Packing & Delivery
Other Services
Provide samples
One sample order is welcome. However, we need to add sample fee to the price and will return it back to you after receiving your large order in future.
01
Delivery time
After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
02
OEM service
Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
03
Product warranty
The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made).
04
FAQ
As one of the leading forestry trailers manufacturers and suppliers in China, we warmly welcome you to wholesale durable forestry trailers made in China here from our factory. All machines are with high quality and competitive price.
