Hydraulic timber trailer
Hydraulic timber trailers, also known as logging trailers, are essential tools for forestry operations. They are used to transport harvested timber or log from the forest to sawmills or other destinations. These trailers are specifically designed to handle the weight and bulk of large logs and are equipped with hydraulic systems to assist in loading and unloading.
7.8Meter timber crane with 12Ton trailer:
|
Part I Log Timer Crane |
||
|
Log Timber crane |
Model |
TC780 |
|
Arm length(m) |
7.8 |
|
|
Rotary torque (KN.M) |
19 |
|
|
Rotation angle |
380° |
|
|
Number of rotating cylinders(piece) |
4 |
|
|
Lifting force at 4 m(kg) |
1880 |
|
|
Lifting force at full length (kg) |
720 |
|
|
Grab swing brake from side to side |
yes |
|
|
Grab swing brake back and forth |
yes |
|
|
Telescopic boom structure |
yes (Two-section telescopic boom at the same time telescopic stroke 1.6 meters) |
|
|
Boom 360° rotary valve |
1pcs |
|
|
One-way throttle valve for 360° rotation of boom |
2pcs |
|
|
balance valve |
1pcs |
|
|
Recommended hydraulic oil flow (L/min) |
45-70 |
|
|
Working pressure (MPa) |
22 |
|
|
Standard rotary motor |
GR-30F(3T flange type) |
|
|
The standard grab |
TG26(Maximum Opining 1470mm) |
|
|
Total weight (no leg, valve block) (kgs) |
1230 |
|
|
surface coating |
||
|
hydraulic tubing |
||
|
Part II Outrigger : "八" Type & A Type both available |
||
|
Part III Log Trailer |
||
|
Log Trailer |
Trailer Model |
TR-120 |
|
Loading capacity (kgs) |
12,000 |
|
|
Loading area (m3) |
2.8 |
|
|
Total length(mm) |
6300 |
|
|
Trailer loading length(mm) |
4300 |
|
|
Total width(mm) |
2300 |
|
|
Tyre type |
500/50-17 |
|
|
Quantity of tyre |
4 |
|
|
Sewing angel |
70 |
|
|
Brake |
Air Brake / Oil Brake |
|
Hot selling models:
There are several types of outriggers available for hydraulic timber trailers, each with its own unique benefits. One type is the hydraulic extension outrigger, which can be extended and retracted as needed. This allows for greater flexibility when positioning the trailer on uneven terrain and makes it easier to load and unload logs.
Another type of outrigger is the hydraulic fold-out outrigger. This type of outrigger can be folded away when not in use, reducing the overall size of the trailer and making it easier to transport. When needed, the outrigger can be quickly unfolded and locked into place, providing additional stability to the trailer.
Some hydraulic timber trailers are also equipped with hydraulic leveling outriggers. These outriggers can be used to adjust the height of the trailer bed, ensuring that logs are loaded evenly and reducing the risk of the trailer tipping over during transport.
Different hydraulic valves of timber crane with trailer:
Hydraulic valves are an essential component of a timber crane with a trailer. They allow for precise control and efficient movement of the crane, making it an indispensable tool in the forestry industry.
Our forest log crane trailer with a hydraulic crane for tractor aligns with your requirements. It comes with a CE and ISO certification, ensuring top-notch quality. The product's key features include a max arm length of 7800mm, rotary angle of 380, and hydraulic oil flow of 30~70l/min.
Our company's core advantage lies in our international ISO: 9001-2000 quality certification and our CE certified products. We have a robust team of over 300 employees, including 30 technical R&D personnel and 20 foreign trade sales staff.
Highly efficient, reliable and safe hydraulic timber trailer can be used by different ways:
- Increased capacity
- Enhanced safety
- Improved maneuverability
- Time-saving
- Environmentally-friendly
- The trailer can be powered by a tractor, a gasoline power unit, a diesel pump station or a electric pump station!

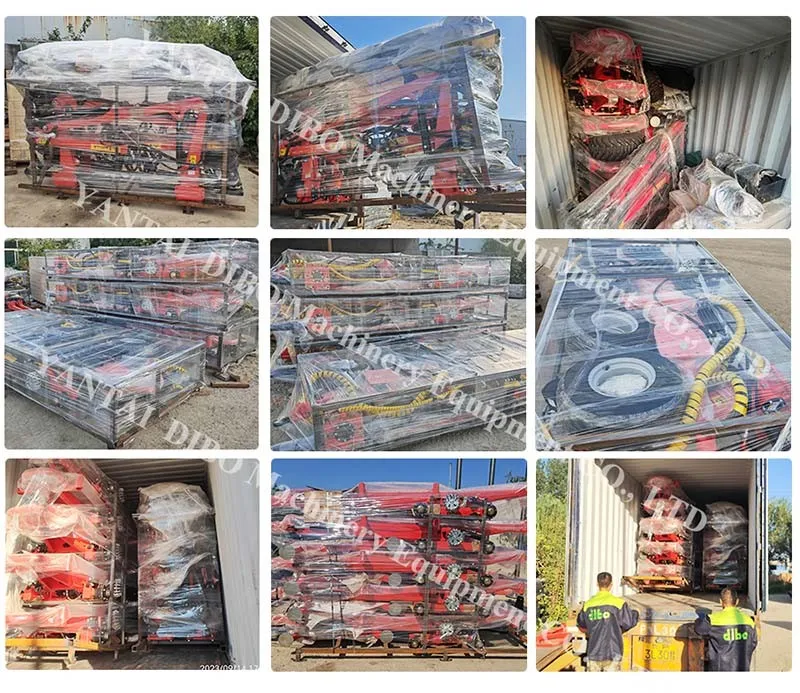

Delivery hydraulic timber trailer to Austria
