The 5m timber crane is a reliable piece of equipment that has been designed to make your job easier. With its powerful lifting capabilities, it is perfect for lifting heavy loads of timber and other materials.
This crane is built with safety in mind, ensuring that you can complete your work without any risk of injury. It is also highly efficient, helping you to get your work done quickly and efficiently. In addition, it is designed to be easy to use, making it accessible to even the most inexperienced workers.
It can be used in a range of different environments, including construction sites, forestry operations, and even in warehouses. No matter what your specific needs are, the 5m timber crane is a valuable tool that you can rely on.
5.5 meter Log Timer Crane
|
5.5 meter Log Timber crane |
Model |
TC500L |
|
Arm length(m) |
5.18 |
|
|
Rotary torque (KN.M) |
11 |
|
|
Rotation angle |
380° |
|
|
Number of rotating cylinders(piece) |
4 |
|
|
Lifting force at 4 m(kg) |
580 |
|
|
Lifting force at full length (kg) |
500 |
|
|
Grab swing brake from side to side |
yes |
|
|
Grab swing brake back and forth |
yes |
|
|
Telescopic boom structure |
yes (Telescopic stroke 1 meter) |
|
|
Boom 360° rotary valve |
1pcs |
|
|
One-way throttle valve for 360° rotation of boom |
2pcs |
|
|
balance valve |
1pcs |
|
|
Recommended hydraulic oil flow (L/min) |
30-45 |
|
|
Working pressure (MPa) |
18 |
|
|
Standard rotary motor |
GR-30 |
|
|
The standard grab |
TG20(Maximum Opining 1260mm) |
|
|
Total weight (no leg, valve block) (kgs) |
750kg |
|
|
surface coating |
Spray plastic (big and small arms, column base, fixture teeth are red, others are black) |
Outrigger
"八" Type & A Type both available
8 ton Log Trailer
|
Log Trailer |
Trailer Model |
TR80 |
|
Loading capacity (kgs) |
8,000 |
|
|
Loading area (m3) |
2.3 |
|
|
Total length(mm) |
5,900 |
|
|
Trailer loading length(mm) |
3,800 |
|
|
Total width(mm) |
2,200 |
|
|
Tyre type |
400/60-15.5 |
|
|
Quantity of tyre |
4 |
|
|
Sewing angel |
70 |
|
|
Brake |
Air Brake / Oil Brake |

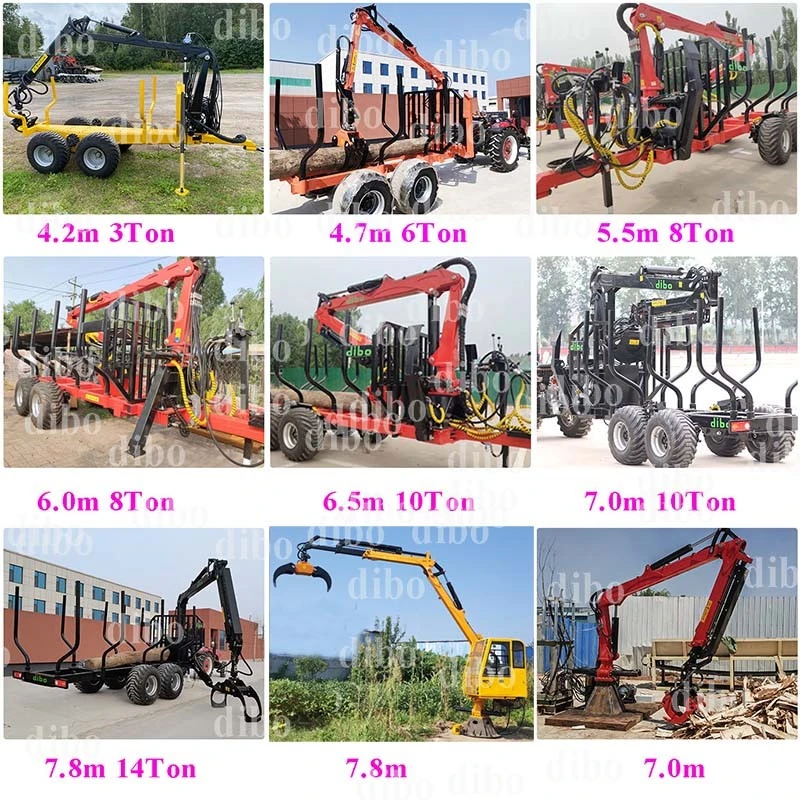

More photos of 5m timber crane:
For more details, pls contact us
Foreign customers are thrilled with the exceptional quality and performance of the 5m timber crane. It has exceeded our expectations in every way and has become an integral part of our operations. The ease of use and versatility of this crane have made our work more efficient and productive, allowing us to complete tasks in a timely and cost-effective manner. We highly recommend this product to anyone in the forestry industry looking for a reliable and durable crane.
More models for your customers and you to choose, which can your customers and you enlarge your business of forestry works, earning more money.From 4.2 meter timber crane with 3 ton trailer to 8.5 meter log crane with 10/12/14/16 ton trailer. OEM and ODM are welcomed also. As a manufacturer that has focused on forestry equipments for many years, we are willing to work with your company to make the quality of the crane more and more stable and more designs.
