The TL7800 Crane: The DIBO TL7800 is the flagship model in our forestry product range, designed specifically for professional loggers who demand uncompromising heavy-duty performance.
With an exceptionally large working radius of 7.8 metres (26 feet), this crane offers unprecedented operational coverage in dense forest environments.
With a powerful lifting capacity of 2,000 kg (4,409 lb) at a height of 4 metres, and still capable of lifting 700 kg steadily when fully extended, it can effortlessly handle even the heaviest hardwoods.
The TL7800Z is constructed from high-quality, high-strength manganese steel and is driven by four reinforced slewing cylinders, generating up to 18 kN·m of slewing torque across a 380-degree rotation range.
TT14000 14-tonne double-girder trailer The TT14000 trailer forms the rock-solid foundation of this system.
Unlike lightweight single-girder competitors, its double-girder frame structure provides extremely high torsional rigidity, preventing chassis twisting even during maximum lateral lifting operations.
Customisation options available
Reinforced outriggers, four-wheel drive, winch, PTO and counter-pipes are all available as optional extras.
Our log loaders and forestry trailers are exported to European markets; the log loaders have boom lengths ranging from 4.2m to 8.5m, whilst the forestry trailers have load capacities ranging from 3 tonnes to 18 tonnes.
We offer a bespoke service; if our standard models do not meet your requirements, we can tailor a product to your specifications.

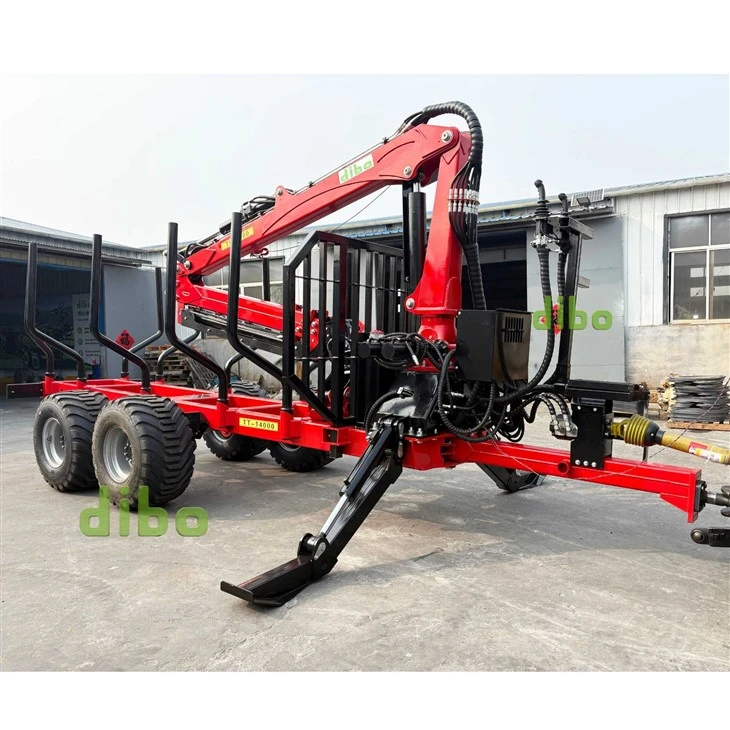

Here is the 7.8-metre timber crane with a 14-tonne trailer that we are showcasing to you
Our trailer-mounted log grapples are available with a wide range of optional configurations.
Below are some of the configuration options; please contact us for further details.
